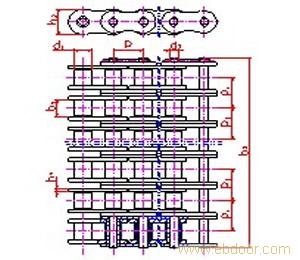

链号 Chain NO.	GB链号 Chain NO.	节距 Pitch p mm	滚子直径 Roller Diameter d1(max) mm	内链节内宽 Inner width of inner link b1(min) mm	销轴直径 Pin diameter d2(max) mm	链板厚度 Plate thickness h1 mm	链板高度 Plate height h2 mm	排距 Array pitch pt mm	销轴长度 Pin length b2 mm	拉伸载荷 Tensile load min KN	每米重量 Weight/m
80R-1	16A-1	25.40	15.88	15.75	7.94	3.18	24.13	-	36.20	55.60	2.84
80R-2	16A-2	25.40	15.88	15.75	7.94	3.18	24.13	29.29	65.50	111.20	5.54
80R-3	16A-3	25.40	15.88	15.75	7.94	3.18	24.13	29.29	94.80	166.80	8.23
80R-4	16A-4	25.40	15.88	15.75	7.94	3.18	24.13	29.29	124.10	222.40	10.93
80R-5	16A-5	25.40	15.88	15.75	7.94	3.18	24.13	29.29	153.40	278.00	13.63
80R-6	16A-6	25.40	15.88	15.75	7.94	3.18	24.13	29.29	182.60	333.60	16.32
80R-8	16A-8	25.40	15.88	15.75	7.94	3.18	24.13	29.29	241.20	444.80	21.72
100R-1	20A-1	31.75	19.05	18.90	9.54	3.96	30.18	-	43.60	86.74	4.25
100R-2	20A-2	31.75	19.05	18.90	9.54	3.96	30.18	35.76	79.30	173.48	8.31
100R-3	20A-3	31.75	19.05	18.90	9.54	3.96	30.18	35.76	115.10	260.22	12.36
100R-4	20A-4	31.75	19.05	18.90	9.54	3.96	30.18	35.76	150.80	346.96	16.41
100R-5	20A-5	31.75	19.05	18.90	9.54	3.96	30.18	35.76	186.60	433.70	20.47
100R-6	20A-6	31.75	19.05	18.90	9.54	3.96	30.18	35.76	222.40	520.44	24.52
100R-8	20A-8	31.75	19.05	18.90	9.54	3.96	30.18	35.76	293.90	693.92	32.63
120R-1	24A-1	38.10	22.22	25.23	11.11	4.75	36.20	-	54.10	125.10	6.18
120R-2	24A-2	38.10	22.22	25.23	11.11	4.75	36.20	45.44	99.60	250.20	12.12
120R-3	24A-3	38.10	22.22	25.23	11.11	4.75	36.20	45.44	145.00	375.30	18.06
120R-4	24A-4	38.10	22.22	25.23	11.11	4.75	36.20	45.44	190.50	500.40	23.99
120R-5	24A-5	38.10	22.22	25.23	11.11	4.75	36.20	45.44	235.90	625.50	29.93
120R-6	24A-6	38.10	22.22	25.23	11.11	4.75	36.20	45.44	281.30	750.60	35.87
120R-7	24A-7	38.10	22.22	25.23	11.11	4.75	36.20	45.44	326.70	875.00	41.82
120R-8	24A-8	38.10	22.22	25.23	11.11	4.75	36.20	45.44	372.20	1000.80	47.75
120R-10	24A-10	38.10	22.22	25.23	11.11	4.75	36.20	45.44	463.10	1251.00	59.63
140R-1	28A-1	44.45	25.40	25.23	12.71	5.56	42.24	-	58.40	170.27	7.91
140R-2	28A-2	44.45	25.40	25.23	12.71	5.56	42.24	48.87	107.20	340.54	15.60
140R-3	28A-3	44.45	25.40	25.23	12.71	5.56	42.24	48.87	156.10	510.81	23.25
140R-4	28A-4	44.45	25.40	25.23	12.71	5.56	42.24	48.87	205.00	681.08	30.90
140R-5	28A-5	44.45	25.40	25.23	12.71	5.56	42.24	48.87	253.90	851.35	38.55
140R-6	28A-6	44.45	25.40	25.23	12.71	5.56	42.24	48.87	302.70	1021.62	46.20
140R-8	28A-8	44.45	25.40	25.23	12.71	5.56	42.24	48.87	400.50	1362.16	61.50
140R-10	28A-10	44.45	25.40	25.23	12.71	5.56	42.24	48.87	498.20	1702.70	76.81
160R-1	32A-1	50.80	28.57	31.55	14.29	6.35	48.26	-	69.00	222.40	10.47
160R-2	32A-2	50.80	28.57	31.55	14.29	6.35	48.26	58.55	127.50	444.80	20.65
160R-3	32A-3	50.80	28.57	31.55	14.29	6.35	48.26	58.55	186.10	667.20	30.82
160R-4	32A-4	50.80	28.57	31.55	14.29	6.35	48.26	58.55	244.60	889.60	40.99
160R-5	32A-5	50.80	28.57	31.55	14.29	6.35	48.26	58.55	303.20	1112.00	51.60
160R-6	32A-6	50.80	28.57	31.55	14.29	6.35	48.26	58.55	361.70	1334.40	61.33
160R-8	32A-8	50.80	28.57	31.55	14.29	6.35	48.26	58.55	478.80	1779.20	81.68
180R-1	36A-1	57.15	35.71	35.48	17.46	7.14	54.31	-	77.70	280.20	13.96
180R-2	36A-2	57.15	35.71	35.48	17.46	7.14	54.31	65.84	143.60	560.50	27.88
180R-3	36A-3	57.15	35.71	35.48	17.46	7.14	54.31	65.84	209.40	840.70	41.62
180R-4	36A-4	57.15	35.71	35.48	17.46	7.14	54.31	65.84	275.30	1121.00	55.36
200R-1	40A-1	63.50	39.67	37.85	19.85	7.92	60.33	-	84.50	347.50	17.35
200R-2	40A-2	63.50	39.67	37.85	19.85	7.92	60.33	71.55	156.00	695.00	34.14
200R-3	40A-3	63.50	39.67	37.85	19.85	7.92	60.33	71.55	227.60	1042.50	50.94
200R-4	40A-4	63.50	39.67	37.85	19.85	7.92	60.33	71.55	299.10	1390.00	67.73
240R-1	48A-1	76.20	47.62	47.35	23.81	9.52	72.39	-	102.20	500.40	25.20
240R-2	48A-2	76.20	47.62	47.35	23.81	9.52	72.39	87.83	190.10	1000.80	49.81
240R-3	48A-3	76.20	47.62	47.35	23.81	9.52	72.39	87.83	277.90	1501.20	74.43
240R-4	48A-4	76.20	47.62	47.35	23.81	9.52	72.39	87.83	365.70	2001.60	99.04
