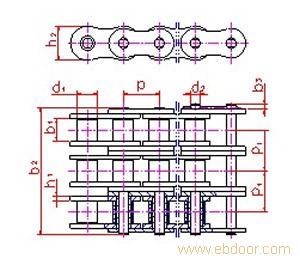

链号 Chain NO.	GB链号 Chain NO.	节距 Pitch p mm	滚子直径 Roller Diameter d1(max) mm	内链节内宽 Inner width of inner link b1(min) mm	销轴直径 Pin diameter d2(max) mm	链板厚度 Plate thickness h1 mm	链板高度 Plate height h2 mm	排距 Array pitch pt mm	销轴长度 Pin length b2 mm	止锁销附加宽度 b3 mm	拉伸载荷 Tensile load min KN	每米重量 Weight/m
80H-1	80H-1	25.40	15.88	15.75	7.94	3.96	24.13	-	35.9	3.6	82.10	3.20
80H-2	80H-2	25.40	15.88	15.75	7.94	3.96	24.13	32.59	68.4	3.6	164.20	6.34
100H-1	100H-1	31.75	19.05	18.90	9.54	4.75	30.18	-	42.9	4.0	119.20	4.71
100H-2	100H-2	31.75	19.05	18.90	9.54	4.75	30.18	39.09	82	4.0	238.40	9.33
100H-3	100H-3	31.75	19.05	18.90	9.54	4.75	30.18	39.09	121.1	4.0	357.60	13.94
120H-1	120H-1	38.10	22.22	25.23	11.11	4.75	36.20	-	53.30	4.2	163.30	6.72
120H-2	120H-2	38.10	22.22	25.23	11.11	4.75	36.20	48.87	102.20	4.2	326.60	13.35
120H-3	120H-2	38.10	22.22	25.23	11.11	4.75	36.20	48.87	151.00	4.2	489.90	19.98
140H-1	140H-1	44.45	25.40	25.23	12.71	5.56	42.24	-	57.00	4.7	216.20	8.54
140H-2	140H-2	44.45	25.40	25.23	12.71	5.56	42.24	52.20	109.20	4.7	432.40	16.96
140H-3	140H-3	44.45	25.40	25.23	12.71	5.56	42.24	52.20	161.40	4.7	648.60	25.40
160H-1	160H-1	50.80	28.57	31.55	14.29	6.35	48.26	-	67.40	4.9	223.00	11.30
160H-2	160H-2	50.80	28.57	31.55	14.29	6.35	48.26	61.90	129.30	4.9	446.00	22.46
200H-1	200H-1	63.50	39.67	37.85	22.00	9.52	60.33	-	84.60	6.6	440.00	19.96
200H-2	200H-2	63.50	39.67	37.85	22.00	9.52	60.33	78.31	162.90	6.6	880.00	39.24
200H-3	200H-3	63.50	39.67	37.85	22.00	9.52	60.33	78.31	241.20	6.6	1320.00	58.53
