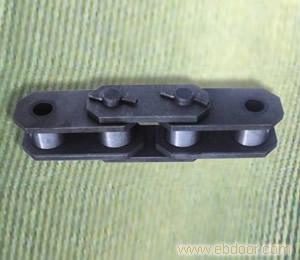

大节距低速重载传动用直板滚子链;

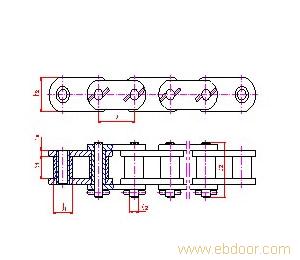

节距 Pitch p mm	滚子直径 Roller Diameter d1(max) mm	销轴直径 Pin diameter d2(max) mm	内链节内宽 Inner width of inner link b1(min) mm	链板厚度 Plate thickness h1 mm	链板高度 Plate height h2 mm	销轴长度 Pin length b2 mm	拉伸载荷 Tensile load min KN	每米重量 Weight/m
77.90	41.28	19.08	39.60	9.70	60.00	95.50	378.00	18.94
88.90	44.45	23.81	38.10	12.70	63.50	107.00	516.00	24.41
103.45	45.24	23.85	49.30	14.10	79.20	125.20	700.00	39.03
114.30	63.50	27.97	52.30	14.10	79.20	135.90	900.00	43.46
127.00	66.68	33.34	55.55	15.88	88.90	148.00	934.00	45.42
127.00	63.50	34.93	71.43	15.88	88.90	165.00	1179.00	50.31
152.40	76.20	38.13	76.20	20.00	128.00	186.00	2167.00	84.56
177.80	88.90	44.48	82.60	22.20	133.40	205.10	2068.00	95.00
